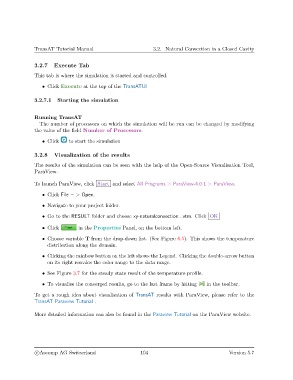

TransAT Tutorial Manual 3.2. Natural Convection in a Closed Cavity

3.2.7 Execute Tab

This tab is where the simulation is started and controlled.

• Click Execute at the top of the TransATUI

3.2.7.1 Starting the simulation

Running TransAT
The number of processors on which the simulation will be run can be changed by modifying
the value of the field Number of Processors.
• Click to start the simulation

3.2.8 Visualization of the results
The results of the simulation can be seen with the help of the Open-Source Visualisation Tool,
ParaView.

To launch ParaView, click Start and select All Programs > ParaView-4.0.1 > ParaView.

• Click File − > Open.

• Navigate to your project folder.

• Go to the RESULT folder and choose xy-naturalconvection...vtm. Click OK

• Click in the Properties Panel, on the bottom left.

• Choose variable T from the drop-down list. (See Figure 6.5). This shows the temperature
distribution along the domain.

• Clicking the rainbow button on the left shows the Legend. Clicking the double-arrow button
on its right rescales the color range to the data range.

• See Figure 3.7 for the steady state result of the temperature profile.

• To visualise the converged results, go to the last frame by hitting in the toolbar.
To get a rough idea about visualisation of TransAT results with ParaView, please refer to the
TransAT Paraview Tutorial .

More detailed information can also be found in the Paraview Tutorial on the ParaView website.

c
Ascomp AG Switzerland 104 Version 5.7
