TransAT Tutorial Manual 4.1. Dam Break
• To complete the assignment of the surface to the adequate boundary condition click .
• Proceed similarly to assign the other surfaces to their respective boundary conditions as
described below
Boundary Xmin 0: Wall
Boundary Xmax 0: Wall
Boundary Ymin 0: Wall
Boundary Ymax 0: Wall
Boundary Zmin 0: Symmetry
Boundary Zmax 0: Symmetry
After the assignment of all the boundary conditions, the window should be similar to Figure 4.2.

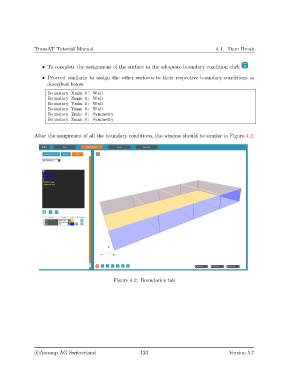

Figure 4.2: Boundaries tab
