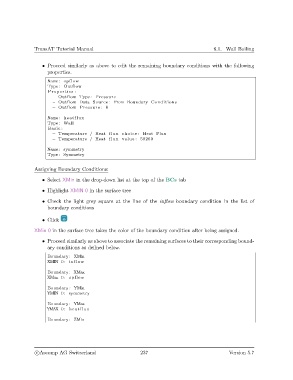

TransAT Tutorial Manual 6.1. Wall Boiling

• Proceed similarly as above to edit the remaining boundary conditions with the following
properties.

Name: opflow
Type : Outflow
Properties :
− Outflow Type : Pressure
− Outflow Data Source : From Boundary Conditions
− Outflow Pressure : 0
Name: heatflux
Type : Wall
Basic :
− Temperature / Heat f l u x choice : Heat Flux
− Temperature / Heat f l u x value : 58260
Name: symmetry
Type : Symmetry

Assigning Boundary Conditions:
• Select XMin in the drop-down list at the top of the BCs tab

• Highlight XMIN 0 in the surface tree

• Check the light grey square at the line of the inflow boundary condition in the list of
boundary conditions

• Click

XMin 0 in the surface tree takes the color of the boundary condition after being assigned.
• Proceed similarly as above to associate the remaining surfaces to their corresponding bound-
ary conditions as defined below.
Boundary : XMin
XMIN 0: inflow
Boundary : XMax
XMax 0: opflow

Boundary : YMin
YMIN 0: symmetry

Boundary : YMax
YMAX 0: heatflux

Boundary : ZMin
