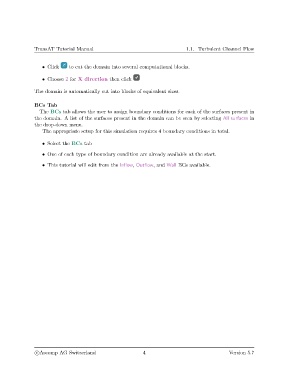

TransAT Tutorial Manual 1.1. Turbulent Channel Flow

• Click to cut the domain into several computational blocks.

• Choose 2 for X direction then click

The domain is automatically cut into blocks of equivalent sizes.

BCs Tab
The BCs tab allows the user to assign boundary conditions for each of the surfaces present in
the domain. A list of the surfaces present in the domain can be seen by selecting All surfaces in
the drop-down menu.
The appropriate setup for this simulation requires 4 boundary conditions in total.

• Select the BCs tab

• One of each type of boundary condition are already available at the start.
• This tutorial will edit from the Inflow, Outflow, and Wall BCs available.
