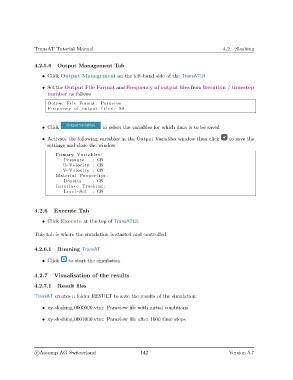

TransAT Tutorial Manual 4.2. Sloshing

4.2.5.6 Output Management Tab
• Click Output Management on the left-hand side of the TransATUI

• Set the Output File Format and Frequency of output files from Iteration / timestep
number as follows
Output F i l e Format : Paraview
Frequency of output f i l e s : 50

• Click to select the variables for which data is to be saved

• Activate the following variables in the Output Variables window then click to save the
settings and close the window

Primary Variables :
Pressure : ON
U−Velocity : ON
V−Velocity : ON
Material Properties :
Density : ON
I n t e r f a c e Tracking :
Level−Set : ON

4.2.6 Execute Tab

• Click Execute at the top of TransATUI.

This tab is where the simulation is started and controlled.

4.2.6.1 Running TransAT

• Click to start the simulation

4.2.7 Visualisation of the results

4.2.7.1 Result files

TransAT creates a folder RESULT to save the results of the simulation:

• xy-sloshing.0000000.vtm: Paraview file with initial conditions

• xy-sloshing.0001000.vtm: Paraview file after 1000 time steps
