TransAT Tutorial Manual 4.2. Sloshing
4.2.5.2 Phase Properties Tab
The flow is constituted of two phases which physical properties have to be defined.
• Click Phase Properties on the left-hand side of the TransATUI
• To define the first phase, under Phase 1 choose Air in the Material Library drop-down
list.
The properties of the fluid can be manually defined, however they can remain default for this
simulation.
• For the second phase, select Phase 2 in the phase tree then set the following fluid properties
Phase 2
Density : 1000.0
Viscosity : 0.009772 ( constant )

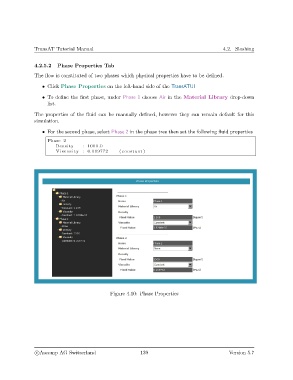

Figure 4.10: Phase Properties
c
Ascomp AG Switzerland 139 Version 5.7
