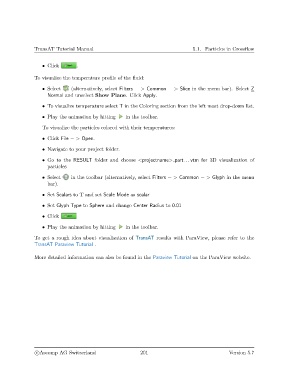

TransAT Tutorial Manual 5.1. Particles in Crossflow

• Click .

To visualize the temperature profile of the fluid:

• Select (alternatively, select Filters − > Common − > Slice in the menu bar). Select Z
Normal and unselect Show Plane. Click Apply.

• To visualize temperature select T in the Coloring section from the left most drop-down list.

• Play the animation by hitting in the toolbar.

To visualize the particles colored with their temperatures:

• Click File − > Open.
• Navigate to your project folder.

• Go to the RESULT folder and choose <projectname> part. . . vtm for 3D visualization of
particles

• Select in the toolbar (alternatively, select Filters − > Common − > Glyph in the menu
bar).

• Set Scalars to T and set Scale Mode as scalar

• Set Glyph Type to Sphere and change Center Radius to 0.01

• Click

• Play the animation by hitting in the toolbar.

To get a rough idea about visualisation of TransAT results with ParaView, please refer to the
TransAT Paraview Tutorial .

More detailed information can also be found in the Paraview Tutorial on the ParaView website.
