TransAT Tutorial Manual                                  5.3. Transport of particles in a pipe



                   • Press   . The XMIN 0 face will now be highlighted in both the surface list and the graphical
                     viewer.
                   • Proceed similarly using the data in the following table to assign the other boundary condi-
                     tions to their respective faces.

                     Boundary XMIN 0: Inflow
                     Boundary XMAX 0: Outflow


               Symmetry conditions are applied on the remaining boundary surfaces. Since boundary conditions
               are set as symmetries by default in TransAT, no extra operation is required to define the remaining
               boundary conditions. The final setup should be similar to Figure 5.13

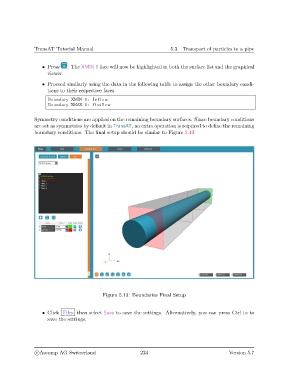

                                            Figure 5.13: Boundaries Final Setup



                   • Click Files then select Save to save the settings. Alternatively, you can press Ctrl+s to
                     save the settings.
