TransAT Tutorial Manual 5.3. Transport of particles in a pipe

• Set the following parameters in the different tabs of the Lagrangian Particle Tracking win-
dow then click to save the settings
Properties tab
P a r t i c l e Density : 997.78 [ kg/mˆ3]
Computational Ratio : 1
Volume Fraction : 0
Number of p a r t i c l e s i z e bins : 1
Diameters [m] Min : 4e−4
Max: 6e−4

Forces tab
Drag Force : ON
Buoyancy Force : OFF

Boundary Conditions tab
P a r t i c l e Inflow Type : Per Cell

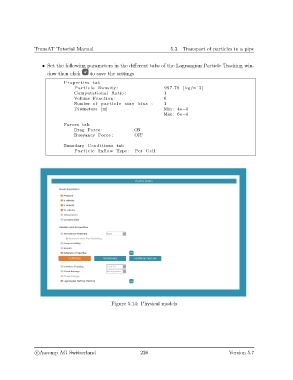

Figure 5.14: Physical models

c
Ascomp AG Switzerland 226 Version 5.7
