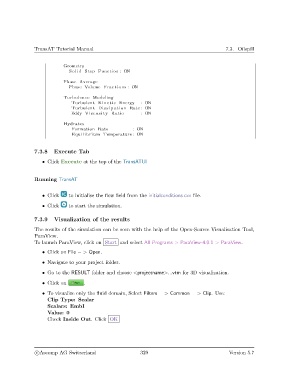

TransAT Tutorial Manual                                                         7.3. Oilspill



                            Geometry
                              Solid Step Function : ON

                            Phase Average
                              Phase Volume Fractions : ON

                            Turbulence Modeling
                               Turbulent Kinetic Energy     : ON
                               Turbulent Dissipation Rate : ON
                               Eddy Viscosity Ratio         : ON

                            Hydrates
                               Formation Rate            : ON
                               Equilibrium Temperature : ON



               7.3.8    Execute Tab

                   • Click Execute at the top of the TransATUI


               Running TransAT


                   • Click    to initialise the flow field from the initialconditions.cxx file.

                   • Click    to start the simulation.


               7.3.9    Visualization of the results
               The results of the simulation can be seen with the help of the Open-Source Visualisation Tool,
               ParaView.
               To launch ParaView, click on Start and select All Programs > ParaView-4.0.1 > ParaView.
                   • Click on File − > Open.

                   • Navigate to your project folder.
                   • Go to the RESULT folder and choose <projectname>...vtm for 3D visualization.

                   • Click on       .

                   • To visualize only the fluid domain, Select Filters − > Common − > Clip. Use:
                     Clip Type: Scalar
                     Scalars: EmbI
                     Value: 0
                     Check Inside Out. Click OK






                c
Ascomp AG Switzerland                    329                                  Version 5.7
