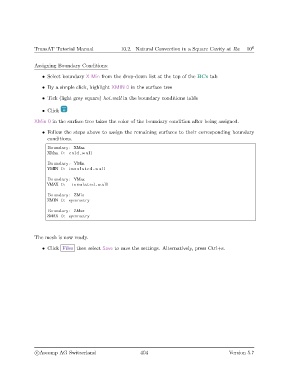

TransAT Tutorial Manual 10.2. Natural Convection in a Square Cavity at Ra = 10 6

Assigning Boundary Conditions:
• Select boundary X Min from the drop-down list at the top of the BCs tab

• By a simple click, highlight XMIN 0 in the surface tree

• Tick (light grey square) hot wall in the boundary conditions table

• Click

XMin 0 in the surface tree takes the color of the boundary condition after being assigned.

• Follow the steps above to assign the remaining surfaces to their corresponding boundary
conditions.
Boundary : XMax
XMax 0: c o l d w a l l

Boundary : YMin
YMIN 0: i n s u l a t e d w a l l
Boundary : YMax
YMAX 0: i n s u l a t e d w a l l
Boundary : ZMin
ZMIN 0: symmetry
Boundary : ZMax
ZMAX 0: symmetry

The mesh is now ready.

• Click Files then select Save to save the settings. Alternatively, press Ctrl+s.
