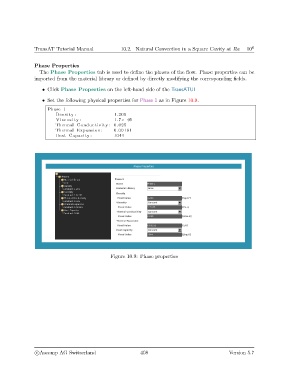

TransAT Tutorial Manual 10.2. Natural Convection in a Square Cavity at Ra = 10 6
Phase Properties
The Phase Properties tab is used to define the phases of the flow. Phase properties can be
imported from the material library or defined by directly modifying the corresponding fields.
• Click Phase Properties on the left-hand side of the TransATUI
• Set the following physical properties for Phase 1 as in Figure 10.9.
Phase 1
Density : 1.205
Viscosity : 1.7 e−05
Thermal Conductivity : 0.025
Thermal Expansion : 0.00161
Heat Capacity : 1044
Figure 10.9: Phase properties
