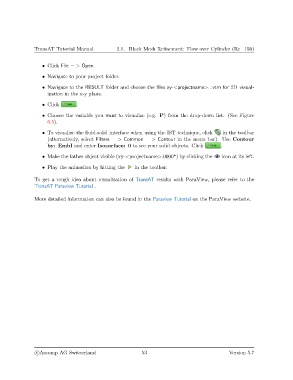

TransAT Tutorial Manual 2.1. Block Mesh Refinement: Flow over Cylinder (Re=150)
• Click File − > Open.
• Navigate to your project folder.
• Navigate to the RESULT folder and choose the files xy-<projectname>...vtm for 2D visual-
ization in the x-y plane.
• Click .
• Choose the variable you want to visualize (e.g. P) from the drop-down list. (See Figure
6.5).
• To visualize the fluid-solid interface when using the IST technique, click in the toolbar
(alternatively, select Filters − > Common − > Contour in the menu bar). Use Contour
by: EmbI and enter Isosurface: 0 to see your solid objects. Click .
• Make the father object visible (xy-<projectname>.0000*) by clicking the icon at its left.
• Play the animation by hitting the in the toolbar.
To get a rough idea about visualisation of TransAT results with ParaView, please refer to the
TransAT Paraview Tutorial .
More detailed information can also be found in the Paraview Tutorial on the ParaView website.
