TransAT Tutorial Manual                                                    4.4. Film Boiling

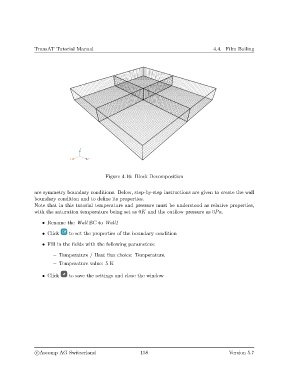

                                             Figure 4.16: Block Decomposition


               are symmetry boundary conditions. Below, step-by-step instructions are given to create the wall
               boundary condition and to define its properties.
               Note that in this tutorial temperature and pressure must be understood as relative properties,
               with the saturation temperature being set as 0K and the outflow pressure as 0Pa.

                   • Rename the Wall BC to Wall1
                   • Click    to set the properties of the boundary condition

                   • Fill in the fields with the following parameters:

                       – Temperature / Heat flux choice: Temperature.
                       – Temperature value: 5 K

                   • Click    to save the settings and close the window


















                c
Ascomp AG Switzerland                    158                                  Version 5.7
