TransAT Tutorial Manual 4.4. Film Boiling
After assigning all the surfaces to their boundary conditions, the BCs tab should be similar to
Figure 4.17.

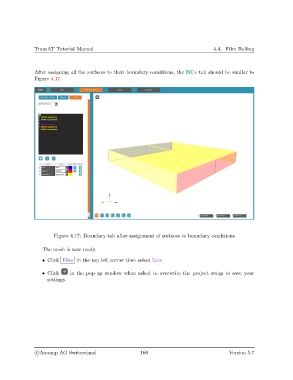

Figure 4.17: Boundary tab after assignment of surfaces to boundary conditions
The mesh is now ready.
• Click Files in the top left corner then select Save
• Click in the pop-up window when asked to overwrite the project setup to save your
settings.
c
Ascomp AG Switzerland 160 Version 5.7
