TransAT Tutorial Manual 4.4. Film Boiling

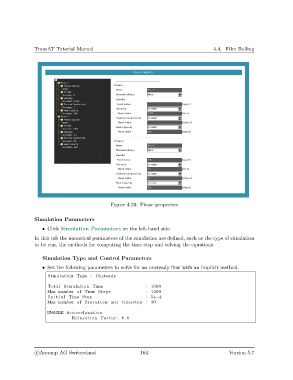

Figure 4.20: Phase properties
Simulation Parameters
• Click Simulation Parameters on the left-hand side
In this tab the numerical parameters of the simulation are defined, such as the type of simulation
to be run, the methods for computing the time step and solving the equations.
Simulation Type and Control Parameters
• Set the following parameters to solve for an unsteady flow with an implicit method.
Simulation Type : Unsteady
Total Simulation Time : 1000
Max number of Time Steps : 1500
I n i t i a l Time Step : 5e−4
Max number of I t e r a t i o n per timestep : 30
ENABLE Autorelaxation
Relaxation Factor : 0.8
