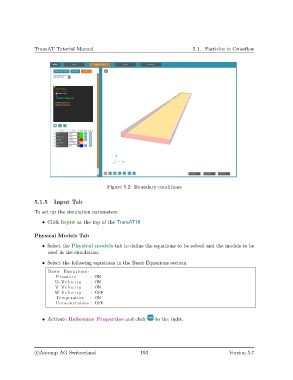

TransAT Tutorial Manual 5.1. Particles in Crossflow

Figure 5.2: Boundary conditions

5.1.5 Input Tab

To set up the simulation parameters
• Click Input at the top of the TransATUI

Physical Models Tab

• Select the Physical models tab to define the equations to be solved and the models to be
used in the simulation.

• Select the following equations in the Basic Equations section
Basic Equations :
Pressure : ON
U−Velocity : ON
V−Velocity : ON
W−Velocity : OFF
Temperature : ON
Concentration : OFF

• Activate Reference Properties and click to the right.

c
