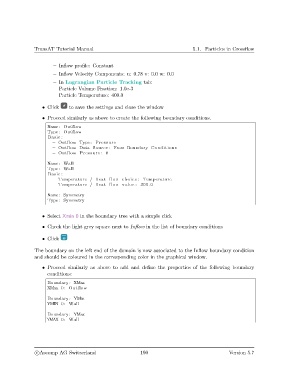

TransAT Tutorial Manual 5.1. Particles in Crossflow

– Inflow profile: Constant
– Inflow Velocity Components: u: 0.78 v: 0.0 w: 0.0
– In Lagrangian Particle Tracking tab:
Particle Volume Fraction: 1.0e-3
Particle Temperature: 400.0

• Click to save the settings and close the window

• Proceed similarly as above to create the following boundary conditions.

Name: Outflow
Type : Outflow
Basic :
− Outflow Type : Pressure
− Outflow Data Source : From Boundary Conditions
− Outflow Pressure : 0

Name: Wall
Type : Wall
Basic :
− Temperature / Heat f l u x choice : Temperature
− Temperature / Heat f l u x value : 300.0
Name: Symmetry
Type : Symmetry

• Select Xmin 0 in the boundary tree with a simple click
• Check the light grey square next to Inflow in the list of boundary conditions

• Click

The boundary on the left end of the domain is now associated to the Inflow boundary condition
and should be coloured in the corresponding color in the graphical window.

• Proceed similarly as above to add and define the properties of the following boundary
conditions:
Boundary : XMax
XMax 0: Outflow
Boundary : YMin
YMIN 0: Wall
Boundary : YMax
YMAX 0: Wall
