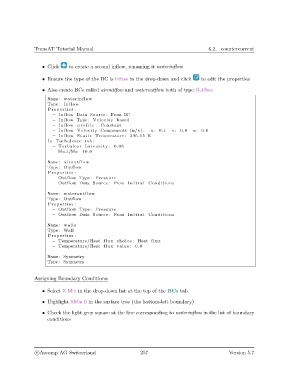

TransAT Tutorial Manual 6.2. countercurrent

• Click to create a second inflow, renaming it waterinflow

• Ensure the type of the BC is Inflow in the drop-down and click to edit the properties

• Also create BCs called airoutlfow and wateroutflow both of type Outflow
Name: waterinflow
Type : Inflow
Properties :
− Inflow Data Source : From BC
− Inflow Type : Velocity based
− Inflow p r o f i l e : Constant
− Inflow Velocity Components (m/ s ) : u : 0.1 v : 0.0 w: 0.0
− Inflow S t a t i c Temperature : 295.15 K
In Turbulence tab :
− Turbulent I n t e n s i t y : 0.08
− Mu t/Mu: 10.0

Name: airoutflow
Type : Outflow
Properties :
− Outflow Type : Pressure
− Outflow Data Source : From I n i t i a l Conditions

Name: wateroutflow
Type : Outflow
Properties :
− Outflow Type : Pressure
− Outflow Data Source : From I n i t i a l Conditions
Name: walls
Type : Wall
Properties :
− Temperature/Heat f l u x choice : Heat f l u x
− Temperature/Heat f l u x value : 0.0
Name: Symmetry
Type : Symmetry

Assigning Boundary Conditions:

• Select X Min in the drop-down list at the top of the BCs tab

• Highlight XMin 0 in the surface tree (the bottom-left boundary)

• Check the light grey square at the line corresponding to waterinflow in the list of boundary
conditions
