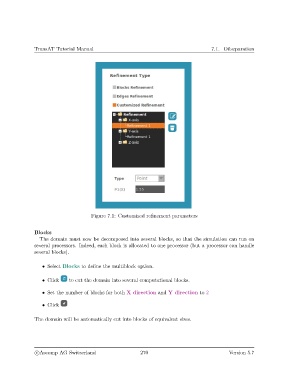

TransAT Tutorial Manual 7.1. Oilseparation
Figure 7.1: Customized refinement parameters
Blocks
The domain must now be decomposed into several blocks, so that the simulation can run on
several processors. Indeed, each block is allocated to one processor (but a processor can handle
several blocks).
• Select Blocks to define the multiblock option.
• Click to cut the domain into several computational blocks.
• Set the number of blocks for both X direction and Y direction to 2
• Click
The domain will be automatically cut into blocks of equivalent sizes.
