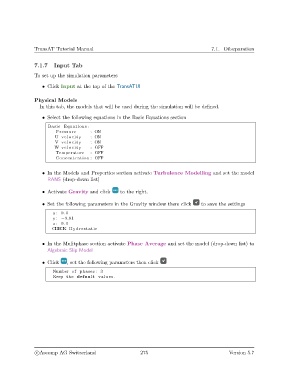

TransAT Tutorial Manual 7.1. Oilseparation

7.1.7 Input Tab

To set up the simulation parameters

• Click Input at the top of the TransATUI

Physical Models
In this tab, the models that will be used during the simulation will be defined.

• Select the following equations in the Basic Equations section
Basic Equations :
Pressure : ON
U v e l o c i t y : ON
V v e l o c i t y : ON
W v e l o c i t y : OFF
Temperature : OFF
Concentration : OFF

• In the Models and Properties section activate Turbulence Modelling and set the model
RANS (drop-down list)

• Activate Gravity and click to the right.

• Set the following parameters in the Gravity window them click to save the settings
x : 0.0
y : −9.81
z : 0.0
CHECK Hydrostatic

• In the Mulitphase section activate Phase Average and set the model (drop-down list) to
Algebraic Slip Model

• Click , set the following parameters then click
Number of phases : 3
Keep the default values .
