TransAT Tutorial Manual 7.1. Oilseparation

• Proceed similarly as above to assign the remaining surfaces to their corresponding boundary
conditions.

Boundary : Xmax
XMAX 0: O i l e x i t

Boundary : YMin
YMIN 0: Waterexit

Boundary : YMax
YMAX 0: Gasexit

Boundary : Zmax
ZMAX 0: Symmetry

Boundary : ZMin
ZMIN 0: Symmetry

The mesh is now ready.

• Click Files in the top left corner of the TransATUI then select Save to save the settings

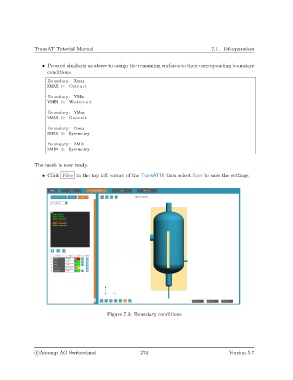

Figure 7.3: Boundary conditions
