TransAT Tutorial Manual                                                    7.2. coupling slug


                                            3
                   • Water: ρ l = 997.78kg/m , µ l = 0.0009772Pa.s, c p,l = 4076.4J/Kg.K, λ l = 0.60475W/m.K.
                                         3
                   • Air: ρ g = 1.205kg/m , µ g = 1.8208e − 5Pa.s, c p,g = 1005J/Kg.K, λ g = 0.0257W/m.K.
                   • In the initial conditions, the bottom half of the volume of the pipe is filled with water, and
                     the top half with air.

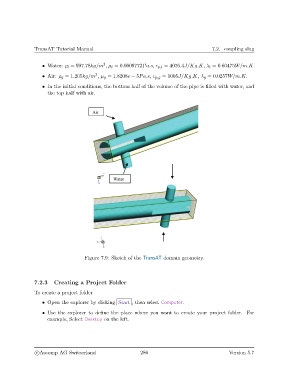

                                    Figure 7.9: Sketch of the TransAT domain geometry.




               7.2.3    Creating a Project Folder

               To create a project folder
                   • Open the explorer by clicking Start , then select Computer.

                   • Use the explorer to define the place where you want to create your project folder. For
                     example, Select Desktop on the left.






                c
Ascomp AG Switzerland                    286                                  Version 5.7
