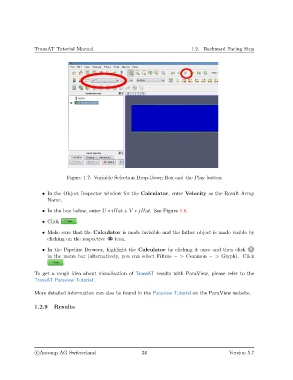

TransAT Tutorial Manual 1.2. Backward Facing Step
Figure 1.7: Variable Selection Drop-Down Box and the Play button
• In the Object Inspector window for the Calculator, enter Velocity as the Result Array
Name.
• In the box below, enter U ∗ iHat + V ∗ jHat. See Figure 1.8.
• Click .
• Make sure that the Calculator is made invisible and the father object is made visible by
clicking on the respective icon.
• In the Pipeline Browser, highlight the Calculator by clicking it once and then click
in the menu bar (alternatively, you can select Filters − > Common − > Glyph). Click
.
To get a rough idea about visualisation of TransAT results with ParaView, please refer to the
TransAT Paraview Tutorial .
More detailed information can also be found in the Paraview Tutorial on the ParaView website.
1.2.9 Results
