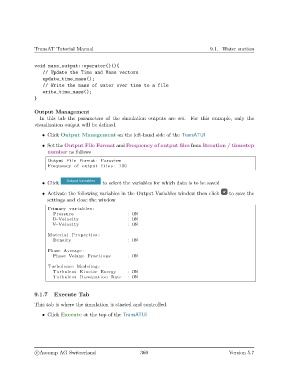

TransAT Tutorial Manual 9.1. Water suction

void mass_output::operator()(){
// Update the Time and Mass vectors
update_time_mass();
// Write the mass of water over time to a file
write_time_mass();
}

Output Management
In this tab the parameters of the simulation outputs are set. For this example, only the
visualization output will be defined.

• Click Output Management on the left-hand side of the TransATUI
• Set the Output File Format and Frequency of output files from Iteration / timestep
number as follows
Output F i l e Format : Paraview
Frequency of output f i l e s : 100

• Click to select the variables for which data is to be saved

• Activate the following variables in the Output Variables window then click to save the
settings and close the window
Primary v a r i a b l e s :
Pressure : ON
U−Velocity : ON
V−Velocity : ON

Material Properties :
Density : ON

Phase Average :
Phase Volume Fractions : ON

Turbulence Modeling :
Turbulent Kinetic Energy : ON
Turbulent Dissipation Rate : ON

9.1.7 Execute Tab

This tab is where the simulation is started and controlled.

• Click Execute at the top of the TransATUI
