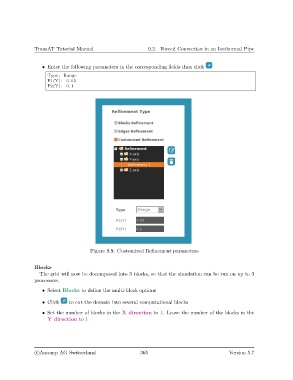

TransAT Tutorial Manual                         9.2. Forced Convection in an Isothermal Pipe



                   • Enter the following parameters in the corresponding fields then click
                     Type : Range
                     P1(Y) : 0.05
                     P2(Y) : 0.1









































                                       Figure 9.9: Customized Refinement parameters


               Blocks
                  The grid will now be decomposed into 3 blocks, so that the simulation can be run on up to 3
               processors.

                   • Select Blocks to define the multi-block options

                   • Click    to cut the domain into several computational blocks

                   • Set the number of blocks in the X direction to 3. Leave the number of the blocks in the
                     Y direction to 1






                c
Ascomp AG Switzerland                    365                                  Version 5.7
