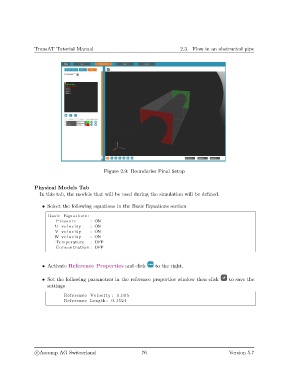

TransAT Tutorial Manual 2.3. Flow in an obstructed pipe

Figure 2.9: Boundaries Final Setup

Physical Models Tab
In this tab, the models that will be used during the simulation will be defined.

• Select the following equations in the Basic Equations section

Basic Equations :
Pressure : ON
U v e l o c i t y : ON
V v e l o c i t y : ON
W v e l o c i t y : ON
Temperature : OFF
Concentration : OFF

• Activate Reference Properties and click to the right.

• Set the following parameters in the reference properties window then click to save the
settings
Reference Velocity : 0.005
Reference Length : 0.1524
