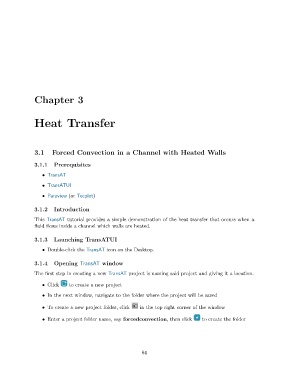

Chapter 3
Heat Transfer
3.1 Forced Convection in a Channel with Heated Walls
3.1.1 Prerequisites
• TransAT
• TransATUI
• Paraview (or Tecplot)
3.1.2 Introduction
This TransAT tutorial provides a simple demonstration of the heat transfer that occurs when a
fluid flows inside a channel which walls are heated.
3.1.3 Launching TransATUI
• Double-click the TransAT icon on the Desktop.
3.1.4 Opening TransAT window
The first step in creating a new TransAT project is naming said project and giving it a location.
• Click to create a new project
• In the next window, navigate to the folder where the project will be saved
• To create a new project folder, click in the top right corner of the window
• Enter a project folder name, say forcedconvection, then click to create the folder
84
