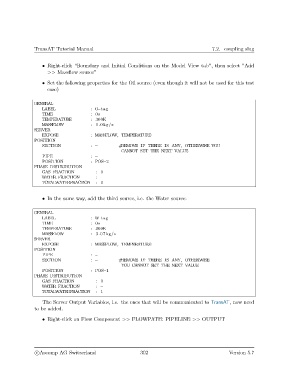

TransAT Tutorial Manual 7.2. coupling slug

• Right-click “Boundary and Initial Conditions on the Model View tab”, then select ”Add
>> Massflow source”

• Set the following properties for the Oil source (even though it will not be used for this test
case)

GENERAL
LABEL : O−tag
TIME : 0 s
TEMPERATURE : 300K
MASSFLOW : 0.0 kg/ s
SERVER
EXPOSE : MASSFLOW, TEMPERATURE
POSITION
SECTION : − #REMOVE IF THERE IS ANY, OTHERWISE YOU
CANNOT SET THE NEXT VALUE
PIPE : −
POSITION : POS−2
PHASE DISTRIBUTION
GAS FRACTION : 0
WATER FRACTION : −
TOTALWATERFRACTION : 0

• In the same way, add the third source, i.e. the Water source:

GENERAL
LABEL : W−tag
TIME : 0 s
TEMPERATURE : 300K
MASSFLOW : 3.07 kg/ s
SERVER
EXPOSE : MASSFLOW, TEMPERATURE
POSITION
PIPE : −
SECTION : − #REMOVE IF THERE IS ANY, OTHERWISE
YOU CANNOT SET THE NEXT VALUE
POSITION : POS−1
PHASE DISTRIBUTION
GAS FRACTION : 0
WATER FRACTION : −
TOTALWATERFRACTION : 1
The Server Output Variables, i.e. the ones that will be communicated to TransAT, now need
to be added.

• Right-click on Flow Component >> FLOWPATH: PIPELINE >> OUTPUT
