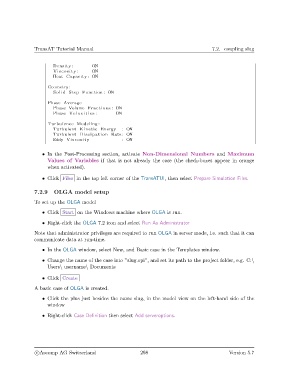

TransAT Tutorial Manual 7.2. coupling slug

Density : ON
Viscosity : ON
Heat Capacity : ON
Geometry :
Solid Step Function : ON
Phase Average
Phase Volume Fractions : ON
Phase V e l o c i t i e s : ON

Turbulence Modeling :
Turbulent Kinetic Energy : ON
Turbulent Dissipation Rate : ON
Eddy Viscosity : ON

• In the Post-Processing section, activate Non-Dimensional Numbers and Maximum
Values of Variables if that is not already the case (the check-boxes appear in orange
when activated).

• Click Files in the top left corner of the TransATUI, then select Prepare Simulation Files.

7.2.9 OLGA model setup
To set up the OLGA model

• Click Start on the Windows machine where OLGA is run.

• Right-click the OLGA 7.2 icon and select Run As Administrator
Note that administrator privileges are required to run OLGA in server mode, i.e. such that it can
communicate data at run-time.
• In the OLGA window, select New, and Basic case in the Templates window.

• Change the name of the case into ”slug.opi”, and set its path to the project folder, e.g. C:\
Users\ username\ Documents

• Click Create

A basic case of OLGA is created.
• Click the plus just besides the name slug, in the model view on the left-hand side of the
window

• Right-click Case Definition then select Add serveroptions.
