TransAT Tutorial Manual                                                5.2. particleseparator

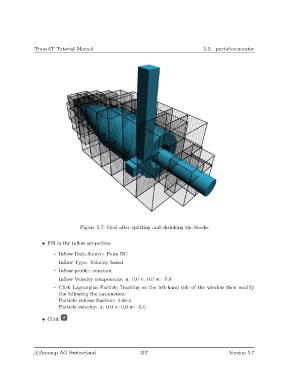

                                   Figure 5.7: Grid after splitting and shrinking the blocks


                   • Fill in the inflow properties:

                       – Inflow Data Source: From BC
                       – Inflow Type: Velocity based
                       – Inflow profile: constant
                       – Inflow Velocity components: u: 0.0 v: 0.0 w: -5.0
                       – Click Lagrangian Particle Tracking on the left-hand side of the window then modify
                          the following the parameters:
                          Particle volume fraction: 1.0e-4
                          Particle velocity: u: 0.0 v: 0.0 w: -5.0

                   • Click






                c
Ascomp AG Switzerland                    207                                  Version 5.7
