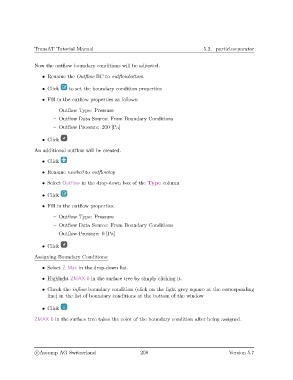

TransAT Tutorial Manual 5.2. particleseparator

Now the outflow boundary conditions will be adjusted.
• Rename the Outflow BC to outflowbottom

• Click to set the boundary condition properties
• Fill in the outflow properties as follows:

– Outflow Type: Pressure
– Outflow Data Source: From Boundary Conditions

– Outflow Pressure: 200 [Pa]

• Click

An additional outflow will be created.

• Click
• Rename newbc0 to outflowtop

• Select Outflow in the drop-down box of the Type column

• Click

• Fill in the outflow properties:

– Outflow Type: Pressure
– Outflow Data Source: From Boundary Conditions
– Outflow Pressure: 0 [Pa]

• Click
Assigning Boundary Conditions:

• Select Z Max in the drop-down list.

• Highlight ZMAX 0 in the surface tree by simply clicking it.

• Check the inflow boundary condition (click on the light grey square at the corresponding
line) in the list of boundary conditions at the bottom of the window

• Click

ZMAX 0 in the surface tree takes the color of the boundary condition after being assigned.
