TransAT Tutorial Manual 7.3. Oilspill

• Enter the following parameters to subdivide and shrink the blocks then click
X d i r e c t i o n : 8
Y d i r e c t i o n : 8
Z d i r e c t i o n : 1
CHECK Shrink outside Objects
Distance : 0.25

• Change the input of the Select Block field to 1 to select Block 1

• Click

• Enter the following parameters to subdivide Block 1 into several blocks then click
X d i r e c t i o n : 2
Y d i r e c t i o n : 2
Z d i r e c t i o n : 1

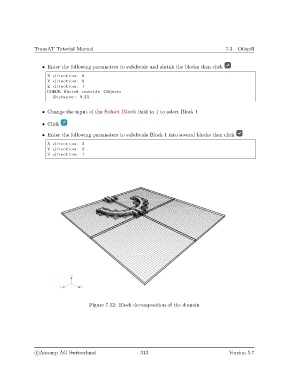

Figure 7.12: Block decomposition of the domain
